CAE Capability

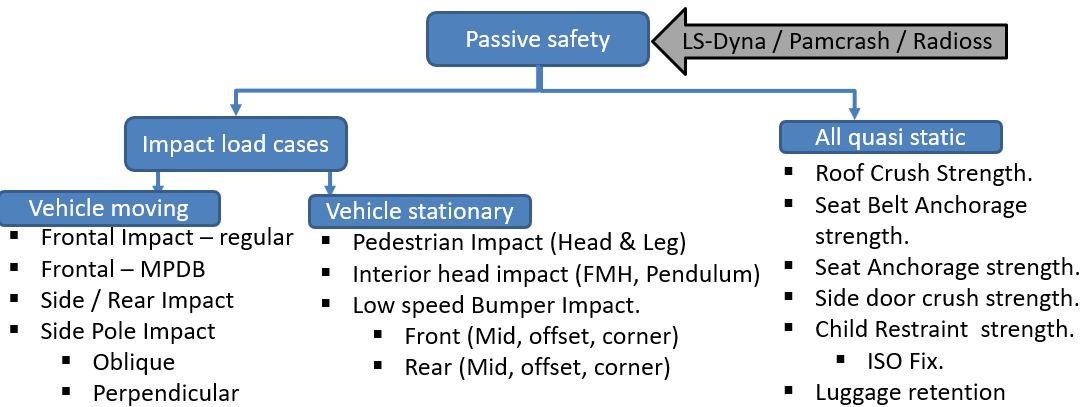

Crash & Occupant safety – Passenger Vehicle Category

  • FMVSS, ECE, AIS, LATAM, ASEAN
  • USNCAP, IIHS,ANCAP,JNCAP, Euro NCAP*, KNCAP, China NCAP, Latin NCAP, GNCAP,ASEAN NCAP,BNCAP**

* It has most comprehensive list of evaluation for star rating calculation.

* Underdevelopment by ARAI INDIA), currently GNCAP can be followed (FODB with 64kmph & Side impact should pass in AIS 99)

CAE Capability

(NVH, Strength & Durability)-Passenger Vehicle Category

NVH (Noise Vibration and Harshness)
(Opti-struct & Nastran) SYSNOISE 		Strength & Durability Opti-struct / Nastran
/ Abaqus coupled with N-code
  • Normal modes* Optimization (Bending & Torsion)
  • Modal alignment chart
  • DPDS (Drive Point Dynamic Stiffness).
 Static stiffness Calculation.
  • Bending
  • Torsion
  • Critical mount in vehicle
FRF (Frequency Response Function) ― SOL 111
  • Structure borne vibration (Mechanical system)
  • Air borne vibration (Acoustical system)
 Strength Evaluation.
  • Oil canning
  • Misuse/abuse loading
  • TRF (Transient Response Function) ― SOL 112
  • Engine ― Free / Free & FRF
 Fatigue Life prediction.
  • Panel rupture
  • Weld rupture
CAE Capability

ev Bus Product development

Body Closure & Hinge requirement
  • Front Cabin Pendulum Impact Mainly for Trucks AIS 029 – Frontal Impact
  • Door Assembly Test:

Stiffness

  • Oil Canning.
  • Normal Mode (Natural Frequency Extraction).
  • Torsion Test.

Strength

  • Aero Load Case mainly on Outer Panel
  • Seal Load Compensation
  • Door Sag
  • Static Over Check (Force input)
  • Dynamic Over Check (Velocity input over the Time)

Durability

  • Door slam (No. of cycle Prediction).
  • 1 Life cycle = 1 Lakhs times Door Operation (Open & Close) test
  • Roll over Simulation
  • Natural Frequency Extraction
  • Stability (LH/RH)
  • Strength & Durability
 Door Latch Test: (Regulation).
  • Both Longitudinal & Transverse As per IS 14225:1995
  • Inertia Load As per ECE R-42 & SAE J 839 July82)
  • Dynamic Full Frontal (56 Kmph ) in proposal stage in INDIA.
 Door Hinge Test: (Regulation).
  • Both Longitudinal & Transverse As per SAE J 934 July 82

CAE Capability

High end services in CAE For all Category

  • Full vehicle Integration for all Domain (Crash, NVH & Durability).
  • Material curve generation for FEA for Parts used in automotive.
    • True stress vs True strain generation for Non linear simulation. (static test).
    • Strain rate dependency material with rupture card generation. (Dynamic test).
      • True stress vs Effective Plastic strain for different speed.
  • Stamping(thinning & Residual strain)simulation will be carried out to identify the feasibility of Part.
  • Random vibration simulation.
  • Spot weld rupture will be generated in CAE. Deliverables will be in encrypted format.
  • Occupant Simulation from that Star rate Prediction for all NCAP Programs.
  • Restraint system will be developed as per client requirements.
    • Seat belt Optimization. (Baseline FE runnable model is required).
    • Airbag Optimization. (Baseline FE runnable model is required).
